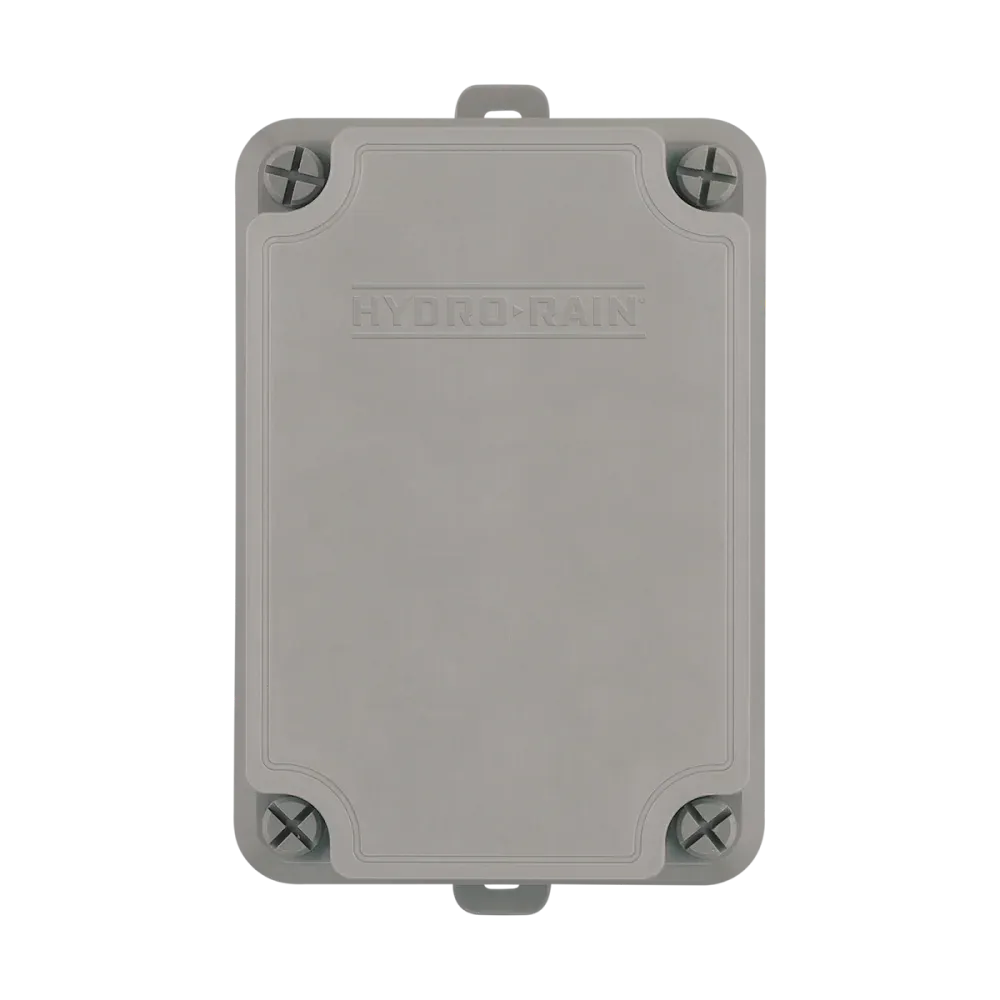

For smaller systems that require a pump, Hydro-Rain offers a pump start relays for pumps up to 2 HP. Our pump start relay enclosures are constructed with a corrosion resistant, UV resistant, shockproof material. The rain-tight, ben fissato, rustproof enclosure provides a safe and secure connection in a housing built to last.
- Works with 1 HP 110VAC or 2 HP 220VAC pumps
- Works with 24VAC sprinkler controllers
- Automatically activates pump when the controller activates a valve
- Locking, weather-resistant case

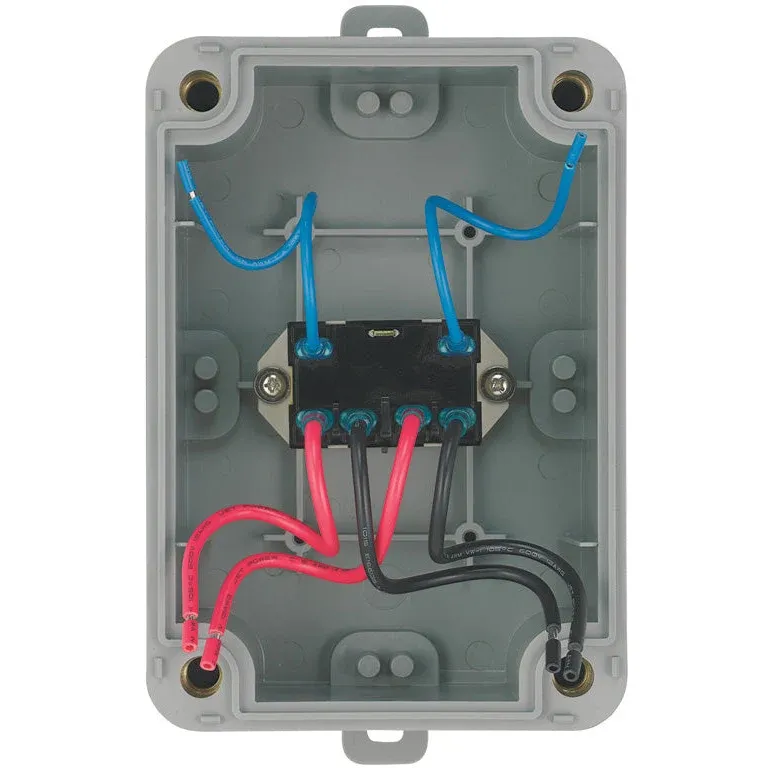

- Covered wiring compartment for extra protection
- Simple, trouble-free design
- Wide-range AC-activated coil that handles 100-120VAC or 200- 240VAC at either 50 or 60 Hz
- Conforms to UL, CSA, TUV and meets IEC950
- Includes test button for relay circuit tests, such as circuit continuity tests.
- 24VAC 50/60Hz
- Inrush: 79mA
- Sealed: 71mA
- Resistance (±10%) 303 ?
- Contr
