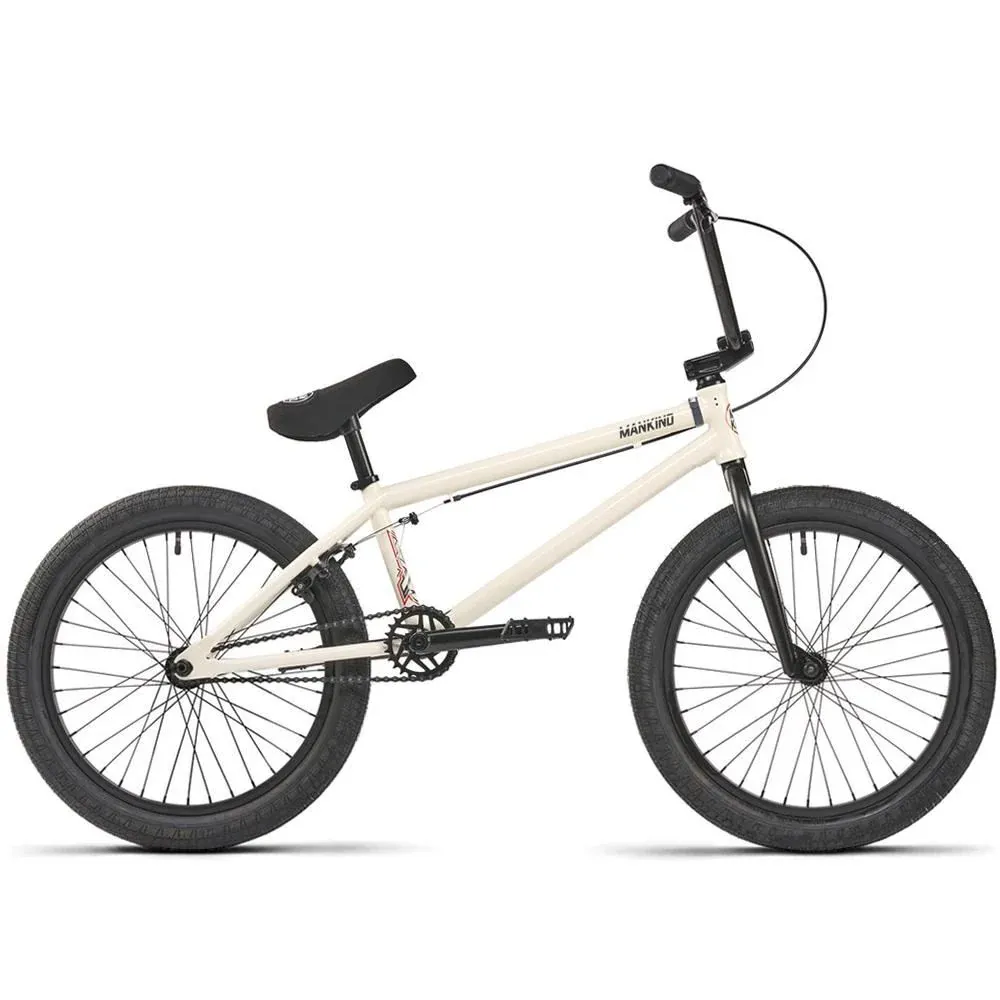

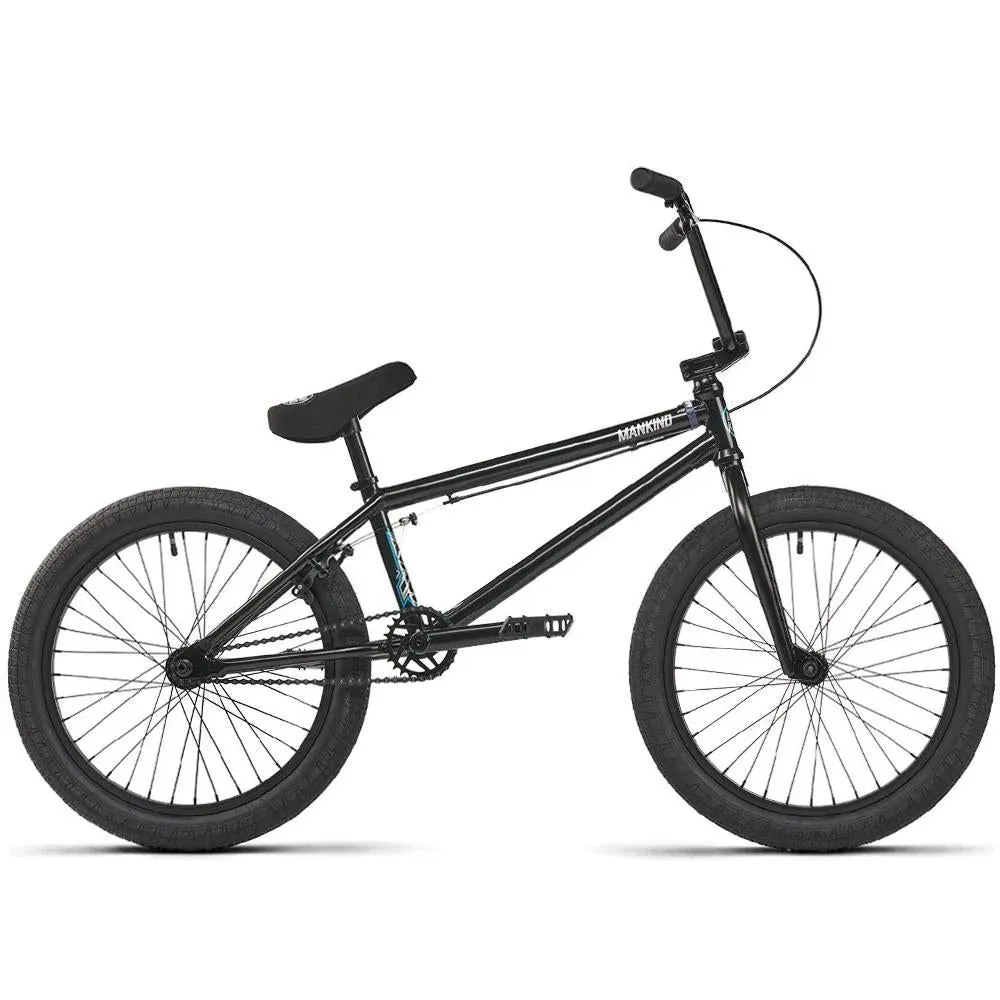

Mankind NXS JR BMX Bike

The Mankind NXS JR Bike offers up a shorter 20″ top tube option on their ever popular NXS range.

Mankind have utilised 1020 Hi-ten steel construction throughout the frame, fork and bars making the NXS JR Bike incredibly strong and durable. A sealed integrated headset and sealed Mid bottom bracket round out the frame.

Keeping this complete rolling smooth is a loose ball front hub and Mankind “Control” cassette hub both laced to aluminium single wall rims ad 2.3″ wide tyres for all the traction you need.

###section###

Product Specs

1. FRAME MATERIAL: 1020 Hi-Ten Steel
2. WHEEL SIZE: 20″
3. TOP TUBE LENGTH: 20″
4. CHAIN STAY LENGTH: 13.25″
5. HEADTUBE ANGLE: 75°
6. SEAT TUBE ANGLE: 71°
7. FORKS: 100% Hi-Ten Steel with Tapered Fork Legs
8. BARS:
   – MATERIAL: Hi-Ten
   – TYPE: 2-Piece
   – RISE: 8.5″ Rise
   – WIDTH: 28.5″ Width
9. STEM: Alloy Top Load
10. HEADSET: Integrated
11. BRAKE MOUNTS: Welded U-Brake
12. BRAKES: U-Brake
13. FRONT HUB: 10mm Loose Ball
14. FRONT RIM: Single Wall
15. REAR HUB: 14mm Sealed Cassette
16. REAR RIM: Single Wall
17. TYRES: 2.3″
18. SPROCKET: 25t
19. CRANKS:
    – MATERIAL: Chromoly
    – TYPE: 3-Piece
    – ARM LENGTH: 170mm
20. BB: 19mm Mid
21. PEDALS: Plastic
22. SEAT: Combo Seat/Post
23. GEARING: 25/9
24. WEIGHT: 23.59lbs (11kg)

###section###

Product Highlights

• Full Size Bike with a Shorter Top Tube and geometry to Suit riders who are 4ft – 5ft 4″ / 120cm -160cm
• Great for Riders who are just too small to handle a full size 20″ BMX
• Strong Hi-ten steel construction
• Strong and durable crankset
• Sealed rear hub
