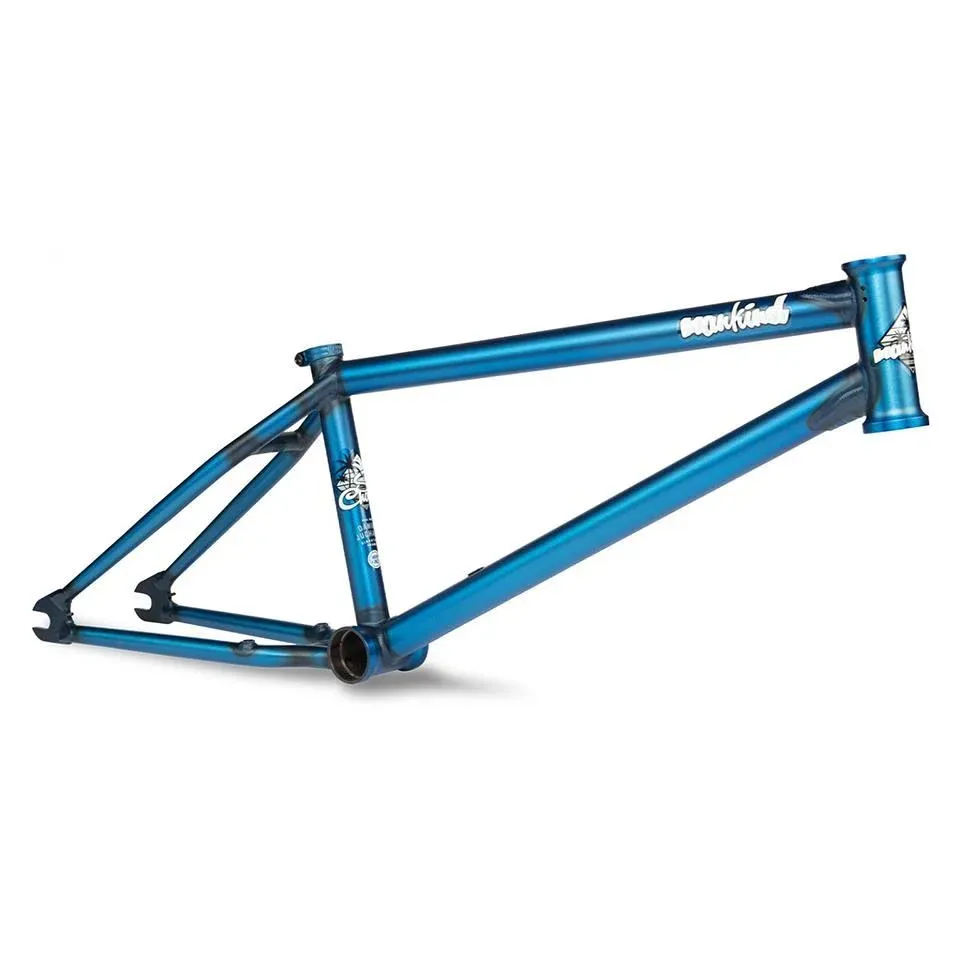

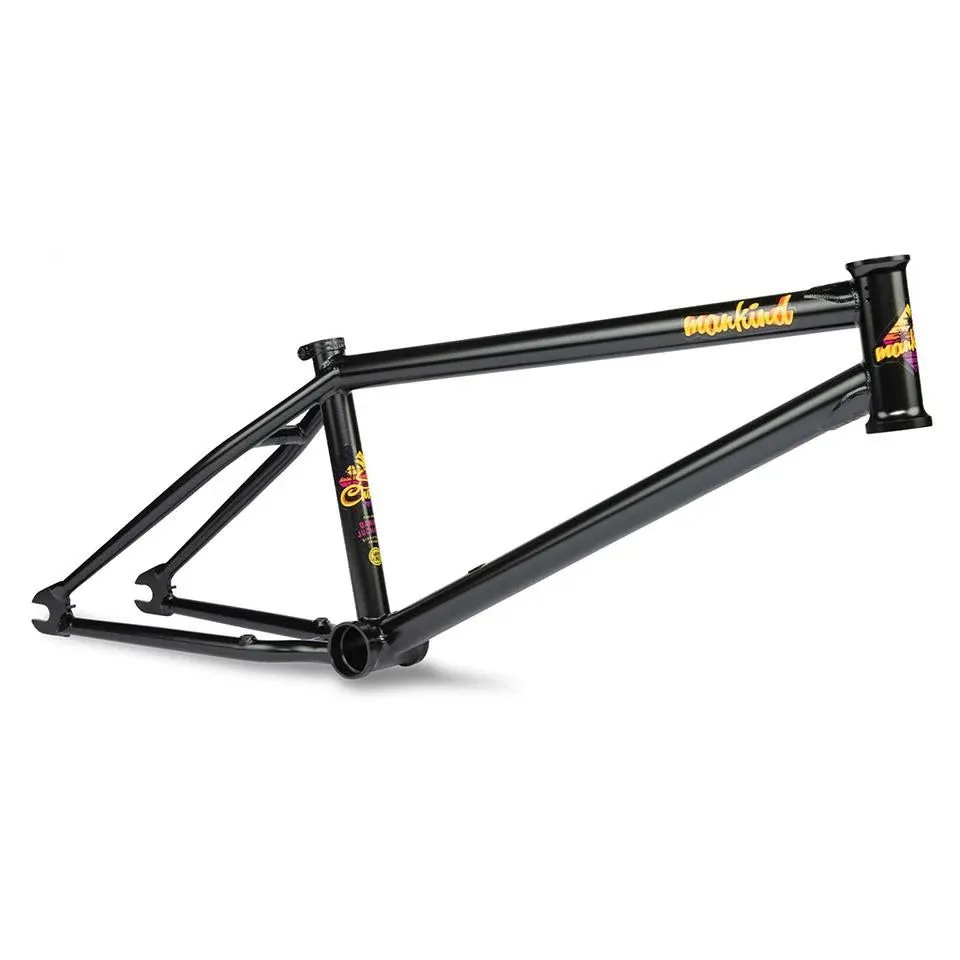

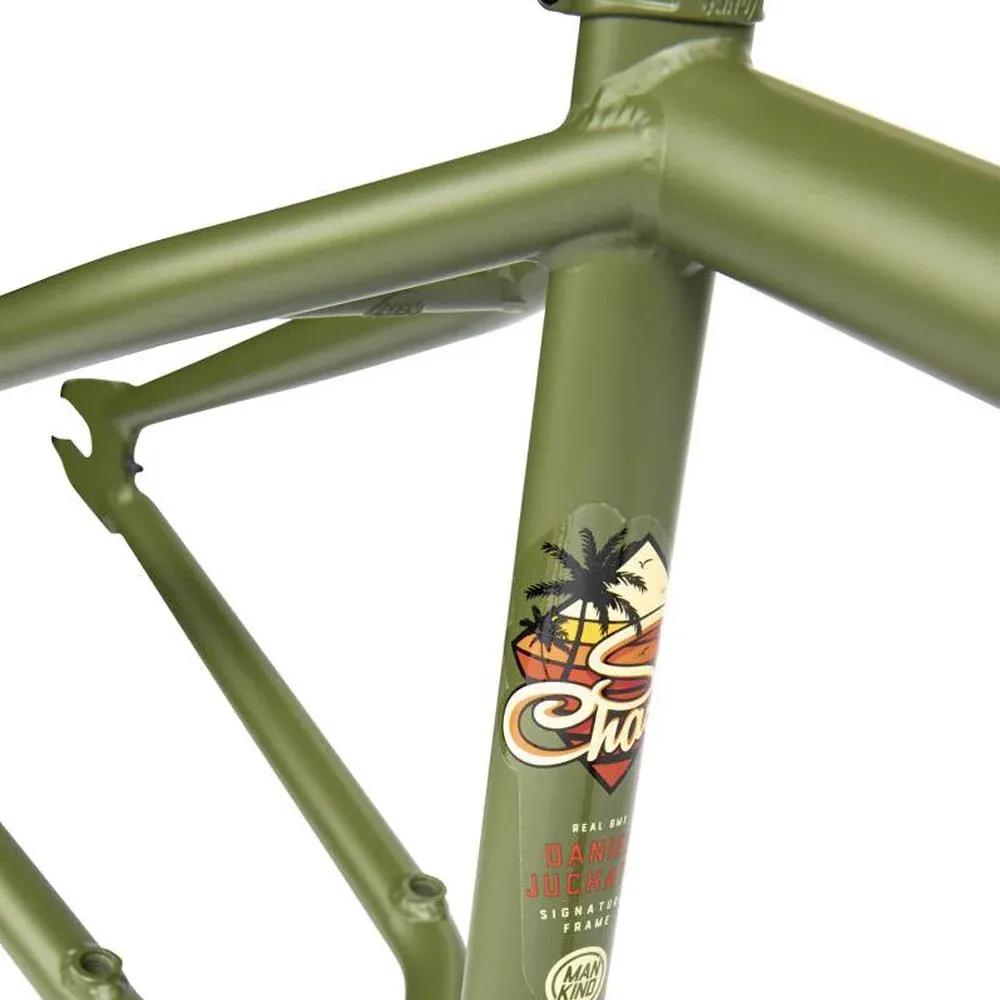

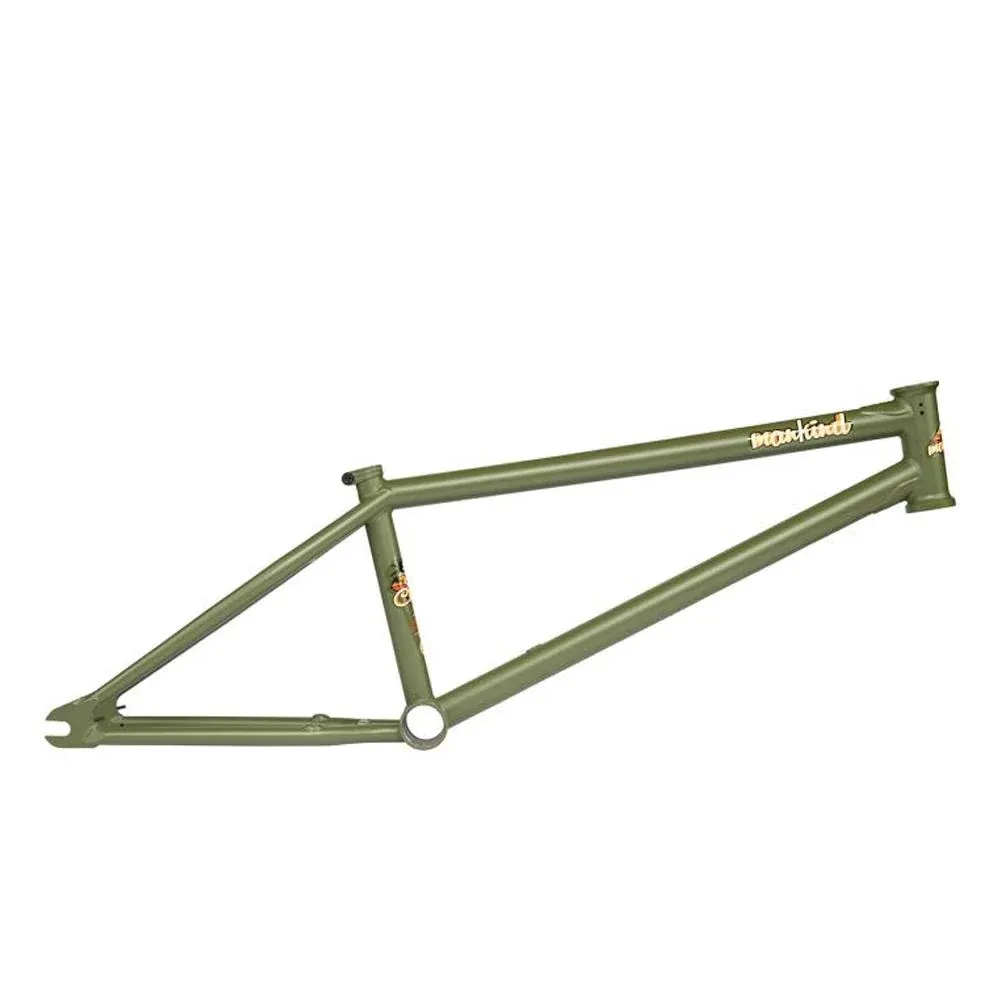

Daniel Juchatz’s signature frame from Mankind, the Sunchaser! Designed for trails and bowls riding, this machine has classic mellow geometry with a 74.5° head tube angle, 11.5“ BB height and 13.75“ chain stay Length (middle of dropout) and removable U-Brake mounts (not included) on the chain stay. To complete this frame Mankind added their integrated Epoch seat clamp, Integrated chain tensioners and a Mankind down tube gusset.
###section###
Product Specs
- MATERIAL: Full 4130 chromoly Sanko Japanese tubing
- HEAD TUBE ANGLE: 74.5°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 13.75” middle of dropout / 13.5” slammed
- BB HEIGHT: 11.5″
- WHEEL SIZE: 20″
- STANDOVER HEIGHT: 9″
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Integrated
- BB TYPE: Mid
- BRAKE MOUNTS: Removable
- GYRO TABS: Removable
- WEIGHT: 4.63lbs
###section###
Product Highlights
- Longer Backend and Mellow Headtube Angle for stability
- Best suited for Trails and riding Fast
- Built in chain tensioners
- Gusseted tubing for added strength
- Removable brake hardware
