Alloy Mast Step 510-155-02

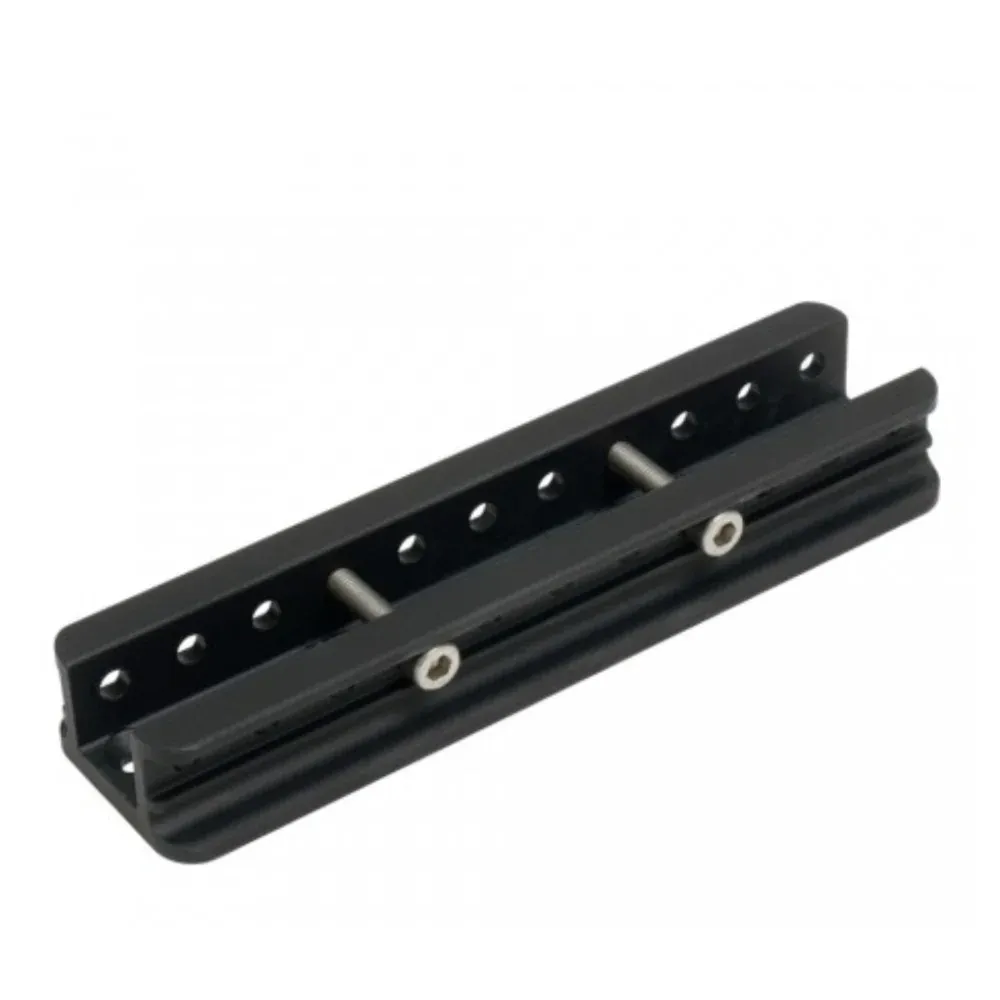

Selden Heavy Duty Aluminium Mast Step with fasteners (Hex bolts and nuts) to hold/locate a Selden (or Super Spars) dinghy mast heel in place.

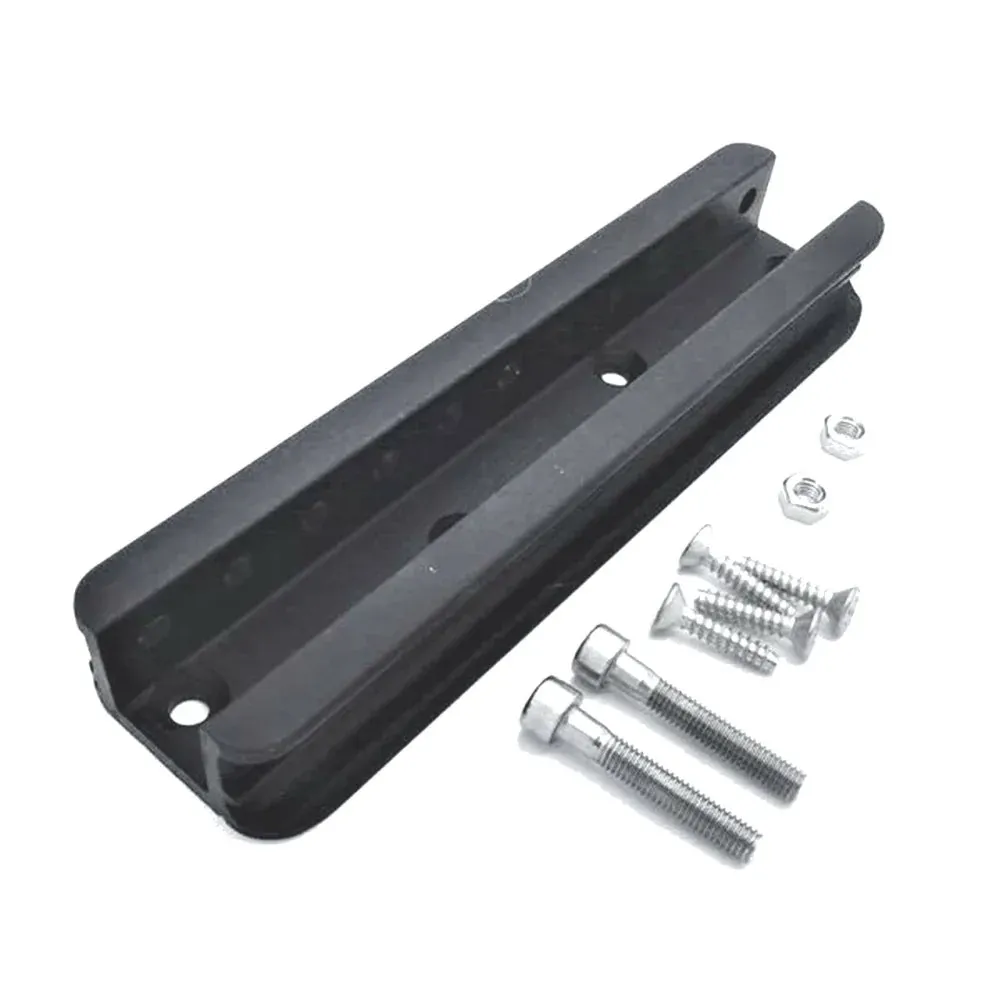

Contents:
1 no. Alloy Anodised Mast Step 510-155023.
2 no. S/S M5 Hex Bolts (35mm overall length).
2 no. S/S M5 Nuts.
4 no. S/S CWK Self Tapping Screws.
Selden 510-155-02 Mast Step Properties
| Number of Base Fixing Holes | 4 no.(5mm dia.holes CWK) |
|---|---|
| Base Fixing Hole Spacing | Front 45 mm / Middle 45mm / Back 45mm |
| Overall Length | 150 mm |
| Overall Width | 40 mm |
| Overall Depth | 21 mm |
| Channel Width | 17.5 mm |
| Channel Internal Depth | 16.4 mm |
| Hole Spacing for Channel Bolts | 13.2 mm |
| Weight | 120 grams |
