S&M ATF XL Frame

S&M have taken their tried and true ATF frame to the next level for the ATF XL verison.

Thanks to it’s top tube sizes being extended up to 22″ it’s built for the taller team and it’s the perfect blend of responsiveness and stability, ready for action on all terrains.

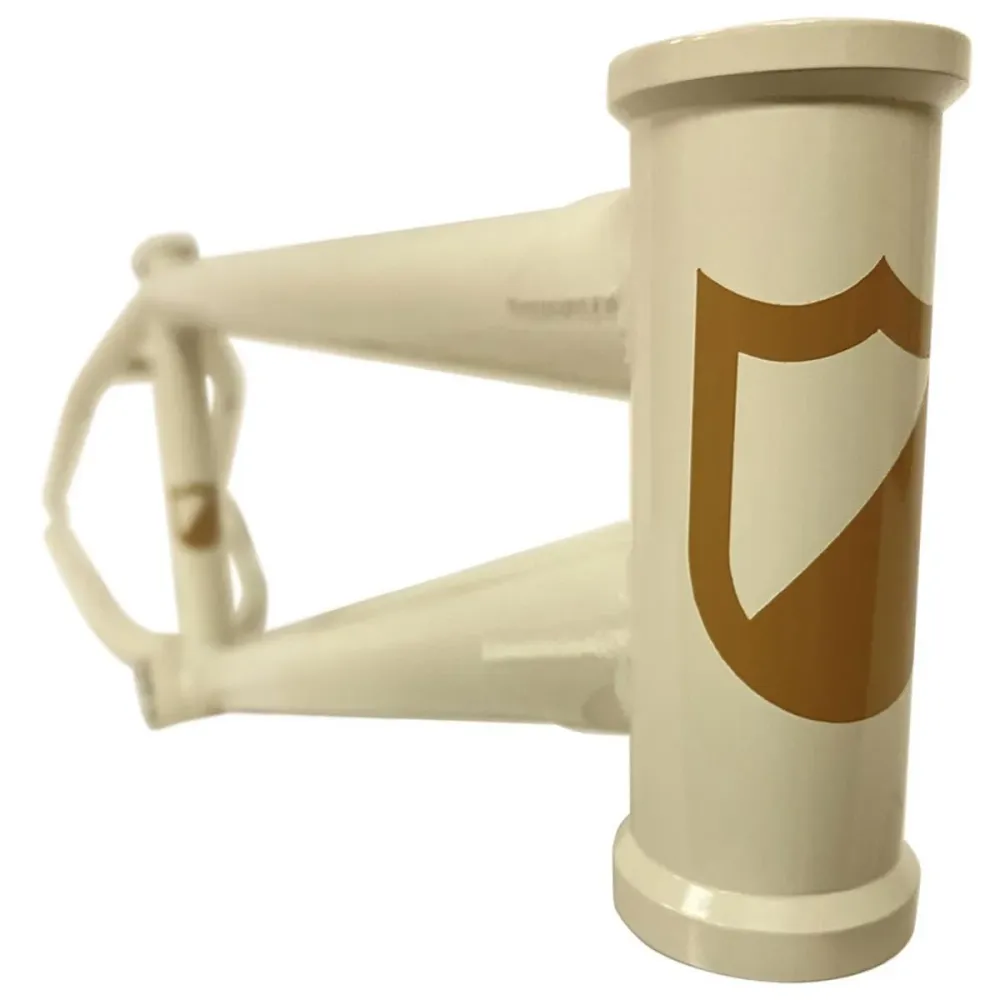

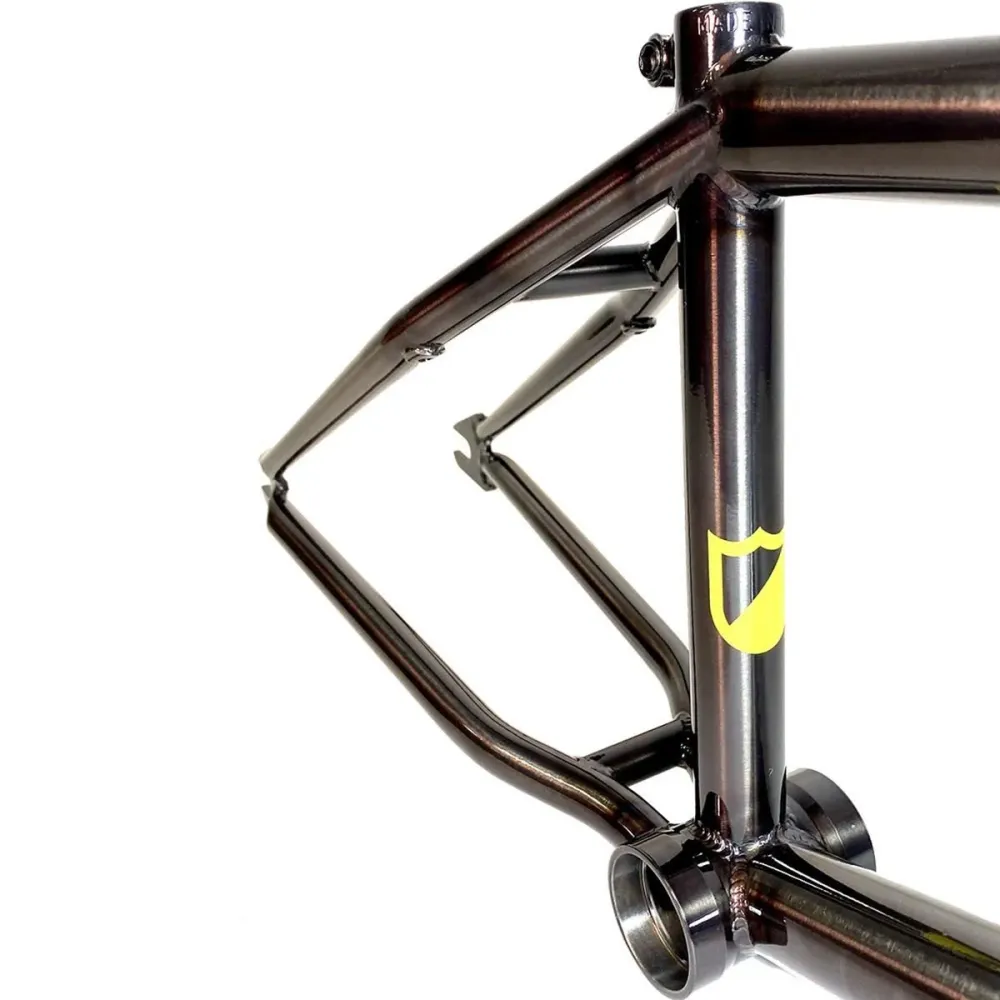

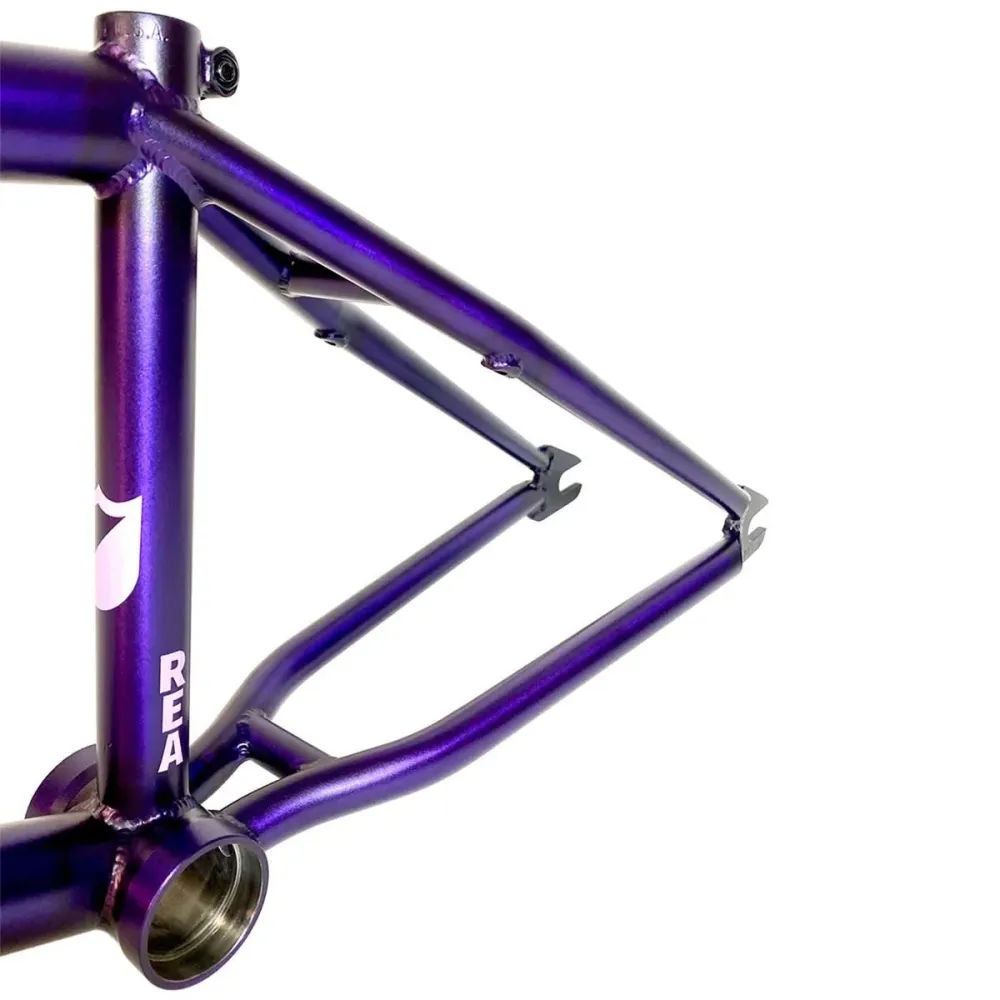

It features a taller 5″ head tube and 9″ standover. The ATF XL frame comes in Beach Tan and Trans Black finishes with a Purple Haze colourway for Aryei Levenson’s signature model.

###section###

Product Specs

1. MATERIAL: Chromoly
2. HEAD TUBE ANGLE: 75°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 13.4″
5. BB HEIGHT: 11.7″
6. WHEEL SIZE: 20″
7. STANDOVER HEIGHT: 9″
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable (Sold separately)
12. GYRO TABS: None
13. WEIGHT: 4.75lbs (2.2kg)

###section###

Product Highlights

• Neutral geometry for responsiveness and stability
• Best suited to street and park riding
• High-quality chromoly construction
• Made in the USA
• Removable brake hardware (Brake hardware not included)
