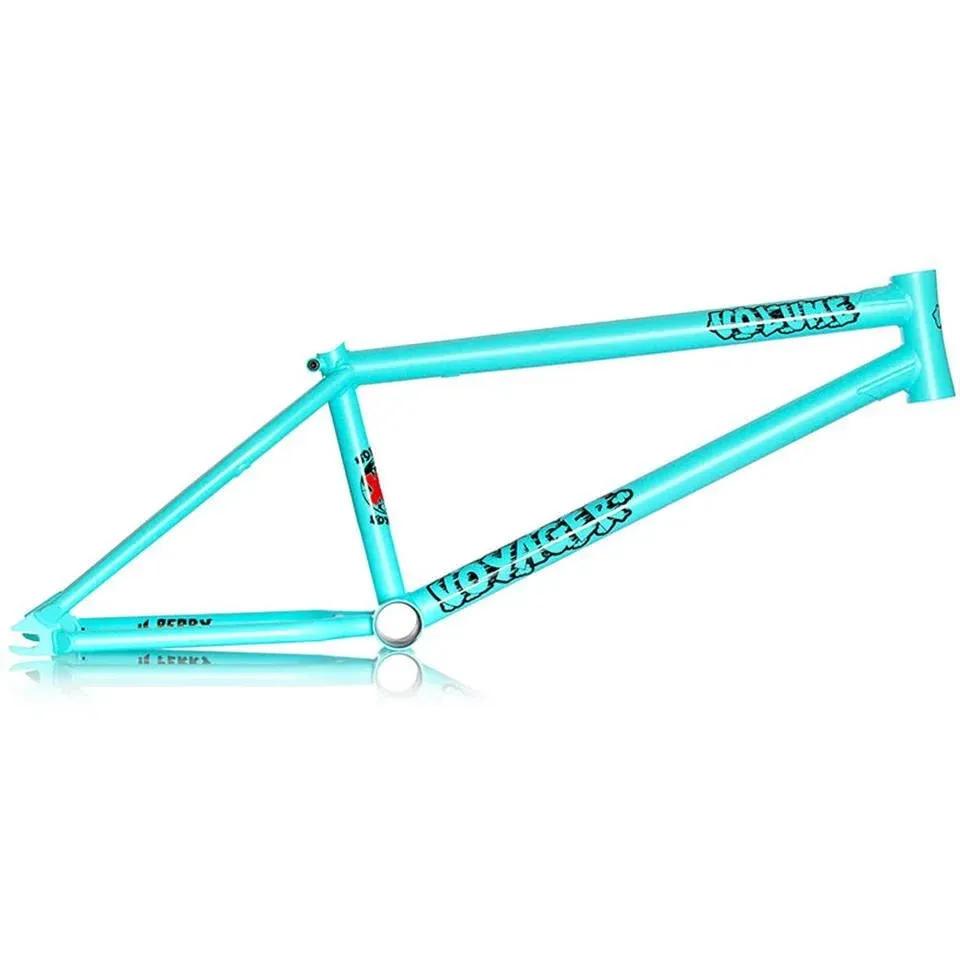

The Voyager XL frame features the same tech feel of the Voyager V2, but with a little extra length. It has a steeper 75.25° heat tube, Longer 13″ slammed chainstay (13.25″ center to center) and a higher 9.25″ seat tube height.
This frame also features double butted 4130 heat treated chromoly tubing, hour glass head tube, and small/clean 6mm thick laser cut and welded dropouts with built in chain tensioner. Added top and bottom gussets for strength, removable brake mounts, and S chainstays for bigger tyre clearance.
###section###
Product Specs
- MATERIAL: 100% 4130 CrMo
- HEAD TUBE ANGLE: 75.25°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 13.25″
- BB HEIGHT: 11.7″
- WHEEL SIZE: 20″
- STANDOVER HEIGHT: 9.25″
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Intergrated
- BB TYPE: Mid
- BRAKE MOUNTS: Removable (Sold separately)
- GYRO TABS: Removable (Sold separately)
- WEIGHT: 5.4 lbs
###section###
Product Highlights
- Responsive Geometry with Short Backend and Steep Headtube
- Great all round frame for all types of riding
- High-quality Chromoly construction
- Strong S-bend chainstays with room for 2.40” tires
- Strong and durable investment cast dropouts
