Joris Coulomb’s signature Om frame has been a staple part of Subrosa’s line up for years now, and the V2 model boasts its biggest update yet.

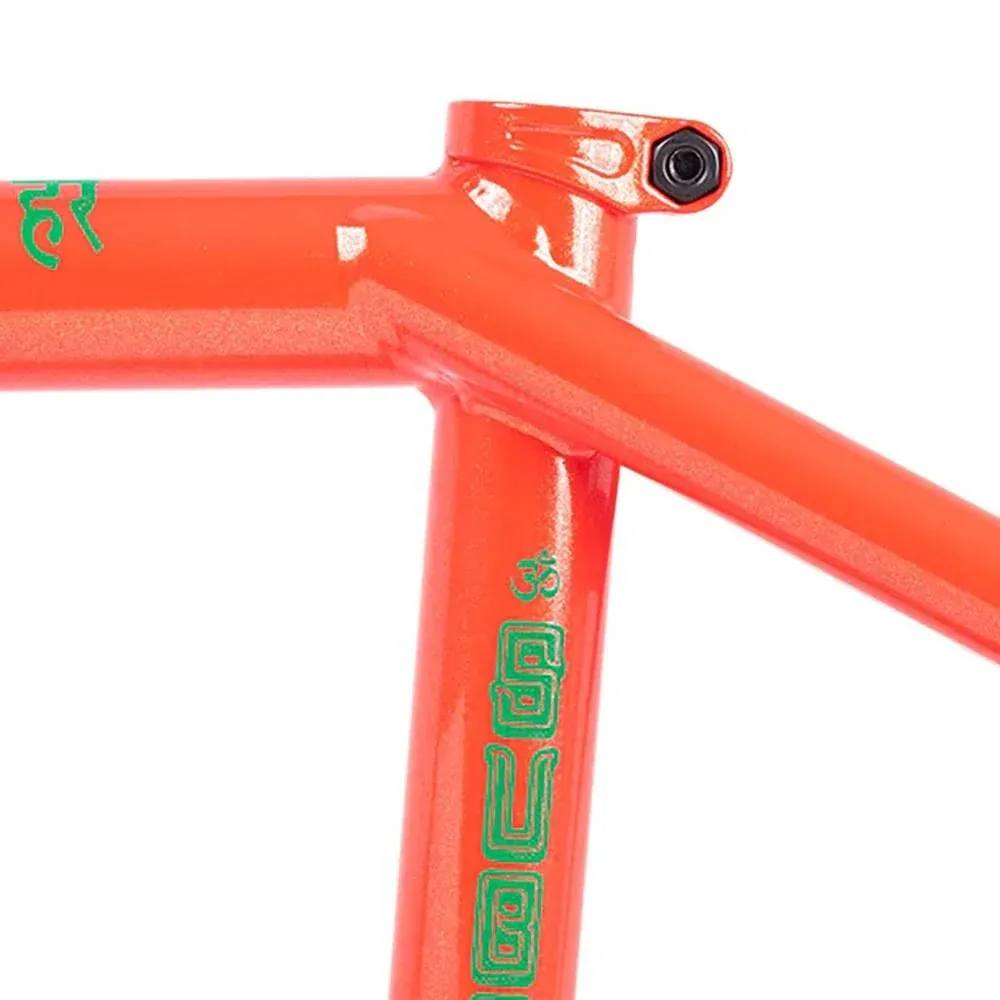

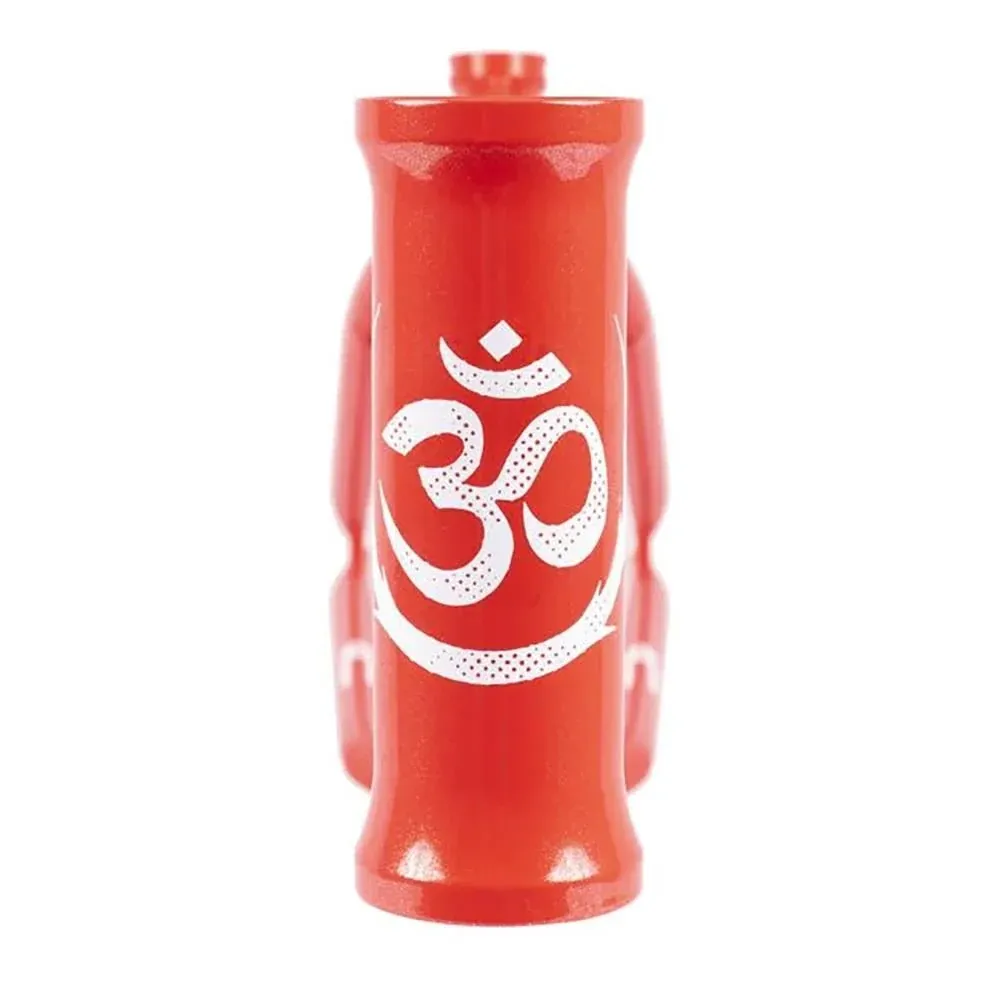

Its full 4130 chromoly construction utilises double butted top and down tubes, gusseted reinforcements at the head tube and a unique chain stay join for maximum strength and rigidity. They’ve stuck to the tried and true modern geometry that riders and Joris love, giving the Om a short 12.95″ chainstay length and an invest cast yoke bottom bracket junction.

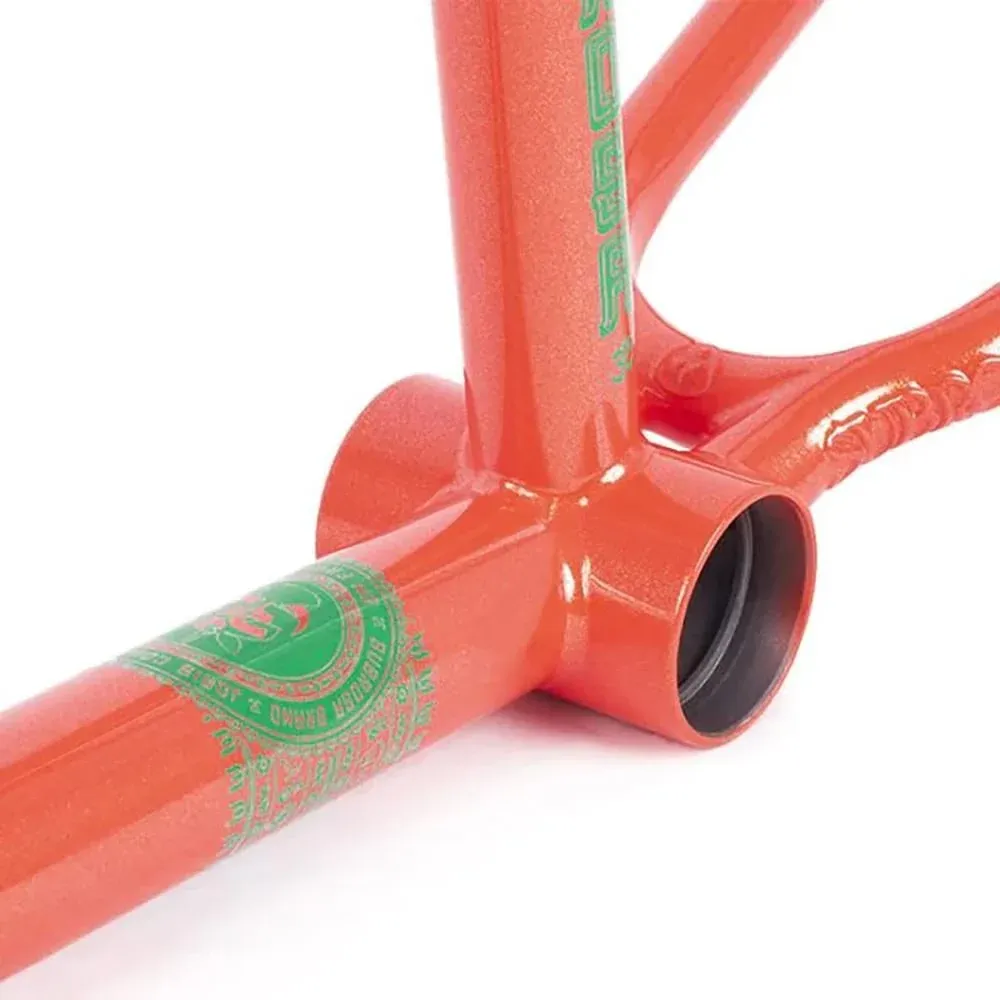

This new junction is designed to create a larger welding surface area around the Bottom Bracket to provide increased strength against bending and allowing you to run the widest tires available.
###section###
Product Specs
- MATERIAL: 100% Chromoly
- HEAD TUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 12.9″ – 13.7″
- BB HEIGHT: 11.7″
- WHEEL SIZE: 20″
- STANDOVER HEIGHT: 9″
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Integrated
- BB TYPE: Mid
- BRAKE MOUNTS: Removable
- GYRO TABS: Removable (Sold separately)
- WEIGHT: 5.1lbs (2.3kg)
###section###
Product Highlights
- Neutral geometry for responsiveness and stability
- Best suited to street and park riding
- High-quality chromoly construction
- Gusseted tubing for added strength

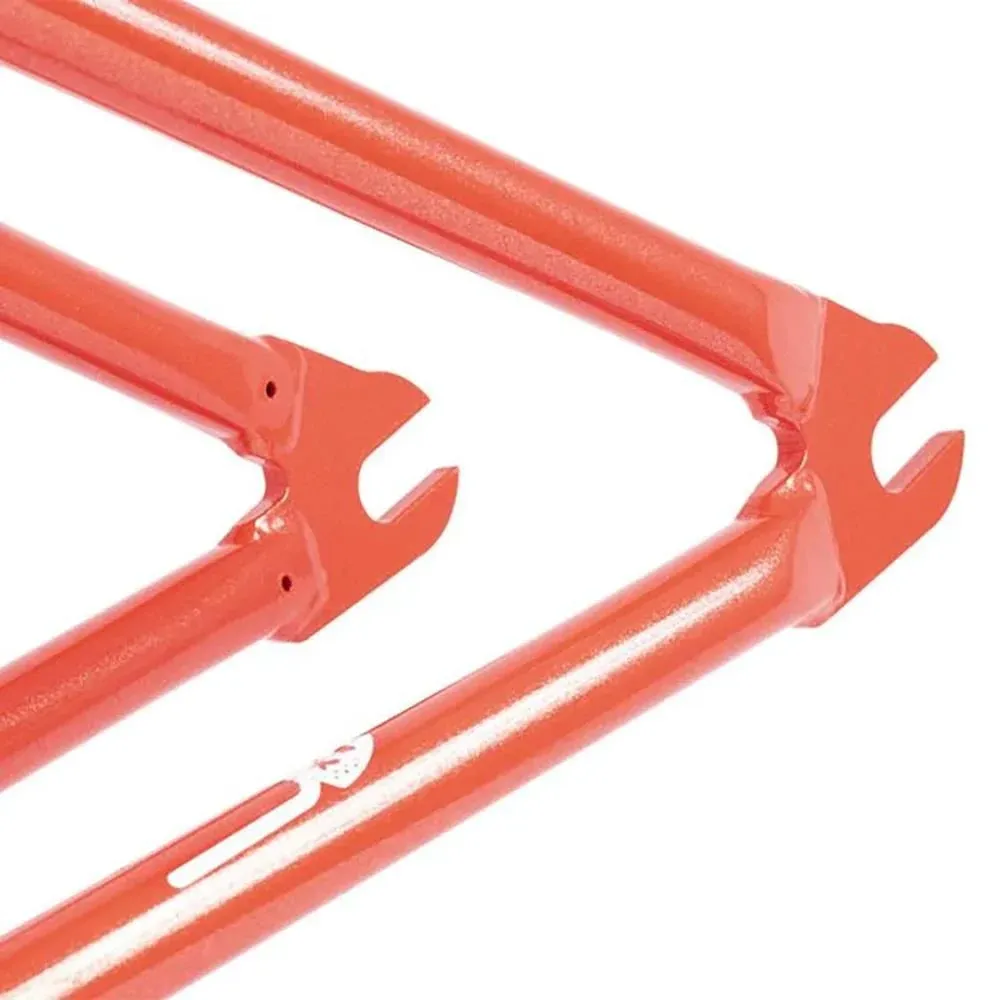

- Strong and durable dropout
